Our first system, installed on a customer’s shed/shade roof where the panels are to be the roofing material
single phase power circuit – Ergon approved
Northern facing –4.32kW: 18 x QPro G2 240w + SB4000TL
Daily Production – 21.6kW est – Full F.I.T. $3,400 / yr
Roofing frame constructed from 3mm & 5mm box steel
Posts installed 1000mm into ground (600mm CEC required)

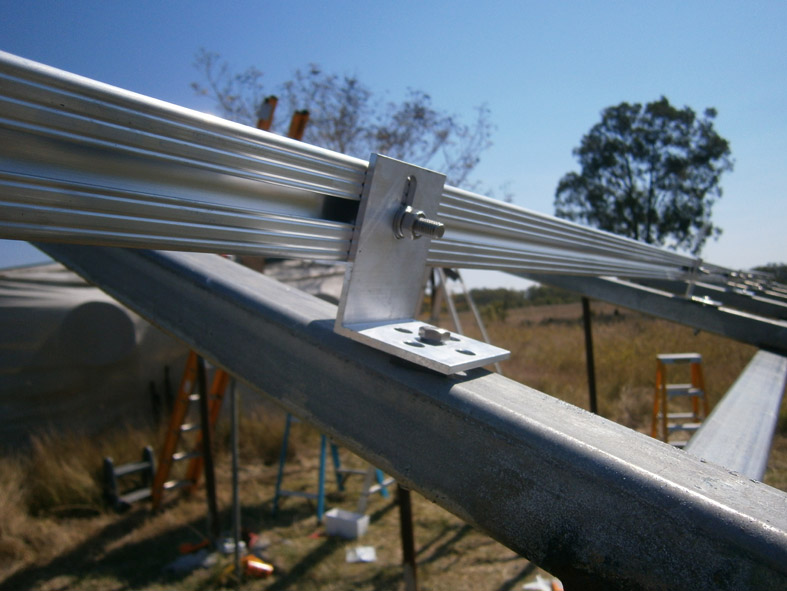

REDSET ‘L’ brackets installed directly onto box frame
Rubber plate separating the aluminium bracket from the steel boxing

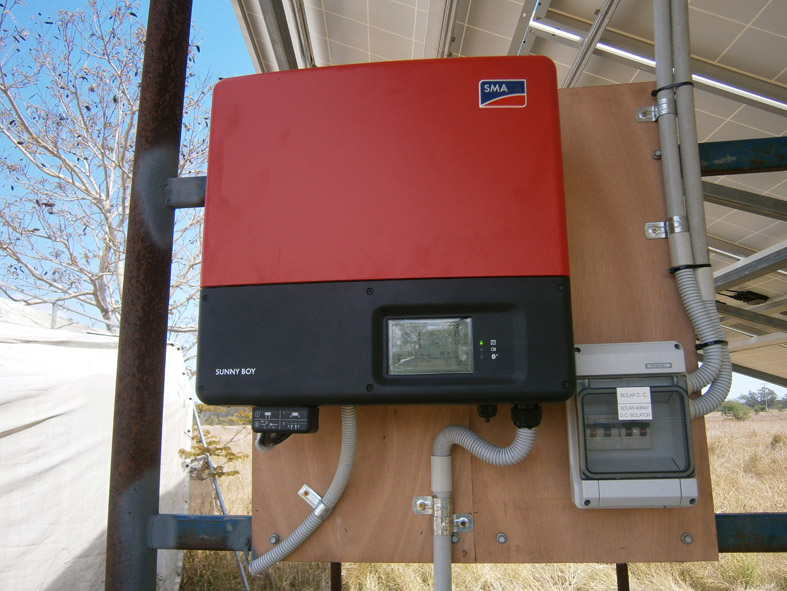

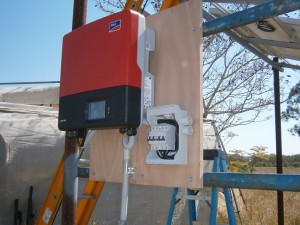

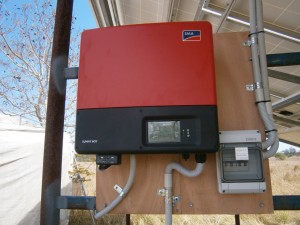

Inverter installation
SunnyBoy 4000TL
DC Safety Switch
Marine Ply Backing Board
Twin Array

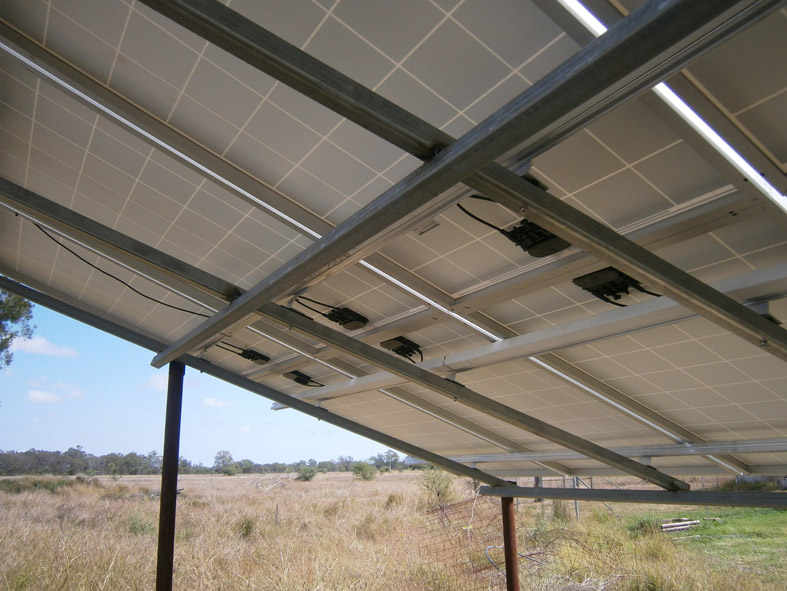

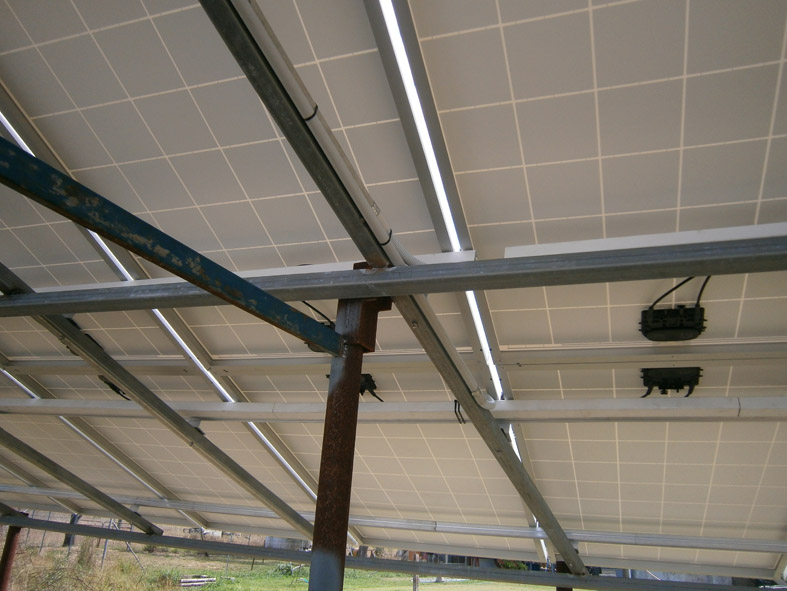

Underside of installation
REDSET cable tray
Replaces majority of cable ties

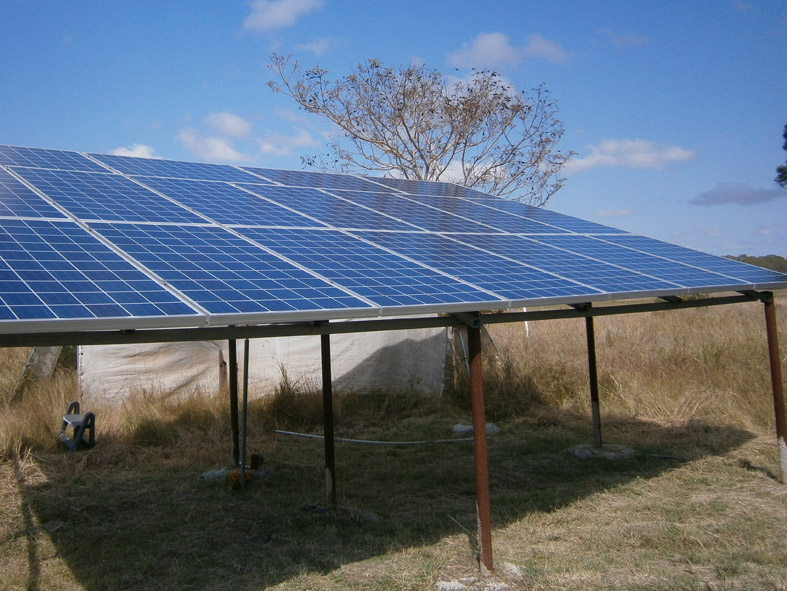

Finished Array
